SHP Primaflex

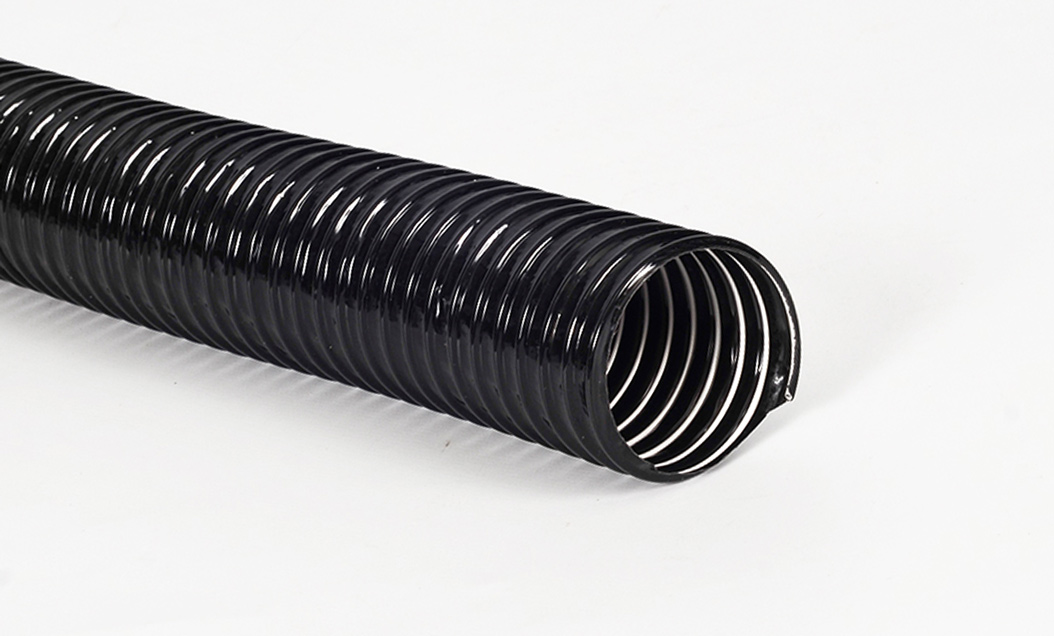

Very lightweight PU hose made from a layer of abrasion-resistant polyurethane with an internal, coated spring steel spiral.

Highly flexible & abrasion resistant
Light
Highly elastic
High compressibility
Largely smooth interior
Wall thickness: 0.30 - 0.36 mm

Standard lengths: 10-20m

Short lengths on request

Colors: Available in various RAL colors on request

Highly flexible & abrasion resistant
Light
Highly elastic
High compressibility
Largely smooth interior
Wall thickness: 0.30 - 0.36 mm

Standard lengths: 10-20m

Short lengths on request

Colors: Available in various RAL colors on request

Ø interior (mm)	Ø exterior (mm)	Radio de curvatura (mm)	Presión (bar)	Vacío (bar)	Peso (kg/m)	Longitud (m)
25	31	25	1,700	0,200	0,270	10
28	34	28	1,600	0,200	0,280	10
32	38	32	1,500	0,200	0,350	10
35	41	35	1,400	0,200	0,380	10
38	44	38	1,400	0,200	0,410	10
41	47	41	1,400	0,180	0,420	10
44	50	44	1,300	0,160	0,450	10
51	57	51	1,300	0,150	0,480	10
63	69	63	1,000	0,140	0,520	10
70	76	70	0,900	0,120	0,700	10
76	82	76	0,800	0,100	0,730	10
80	86	80	0,700	0,090	0,780	10
89	95	89	0,700	0,090	0,840	10
102	108	102	0,600	0,080	0,950	10

+49 (0)4504-804-0 info@shp-primaflex.com

Temperature range -40°C to 90 °C
